VXX999EKA52600

SPECIFICATIONS
Engine – Kawasaki FX1000V V-Twin, governed to 3,600 rpm
Carb Compliant – NO
Air Filter – Heavy-duty canister air filtration system
Drive System – Two Hydro-Gear 16 cc pumps powering two Hydro gear 17.8 cubic
inch motors.
Ground Speed – Infinitely variable speed selection 0–12.0 mph forward, 0–5.0 mph
reverse
Hydro Fluid – Exmark Premium Hydraulic Oil
Cutting Deck – Full-floating UltraCut Series 6. Side discharge standard, with molded
discharge chute and option to bag or mulch.
Cutting Height – 1.5" to 5.0" in 0.25" increments
Deck Lift Assist – Single point HOC; with mechanical lift-assist springs.
Drive Tires – 24 x 9.0-12 Hoosier Grass Master
Front Caster Tires – 15 x 6.0-6, smooth-tread, semipneumatic tires with tapered roller
bearings.
Steering and Motion Control – Twin levers with center fixed reference bar for ease of
control forward and reverse
Curb Weight – 1250 lbs.
Dimensions:
Deck Size - 52"
Width................................64.79"
Length..............................70.45"
Height...............................48.75"
Blades – 3 Blades at 18.00" Length
Blade-Tip Speed – Approximately 18,500 fpm
Blade Spindles – No maintenance, sealed and nongreasable spindles; 7.75" diameter
cutter housing with 1.75" diameter splined blade driver 1.0"-diameter spindle shaft.
Tractor Frame – Welded, heavy-duty 1.5" x 3.0" tubular steel.
Drive-Wheel Release – Allows unit movement without engine running.
Parking Brake – Lever-actuated internal motor brake
Fuel Capacity – 14-gallon dual fuel tanks on RH and LH side
Electrical – 12-volt battery with 30-amp alternator.
PTO Engagement – Warner 250 ft-lb clutch
Standard Features – Enhanced Engine Hour Meter
Safety Package – Operator Presence Controls (OPC) with safety interlock system
indicators
2025 Bid Specification Sheet

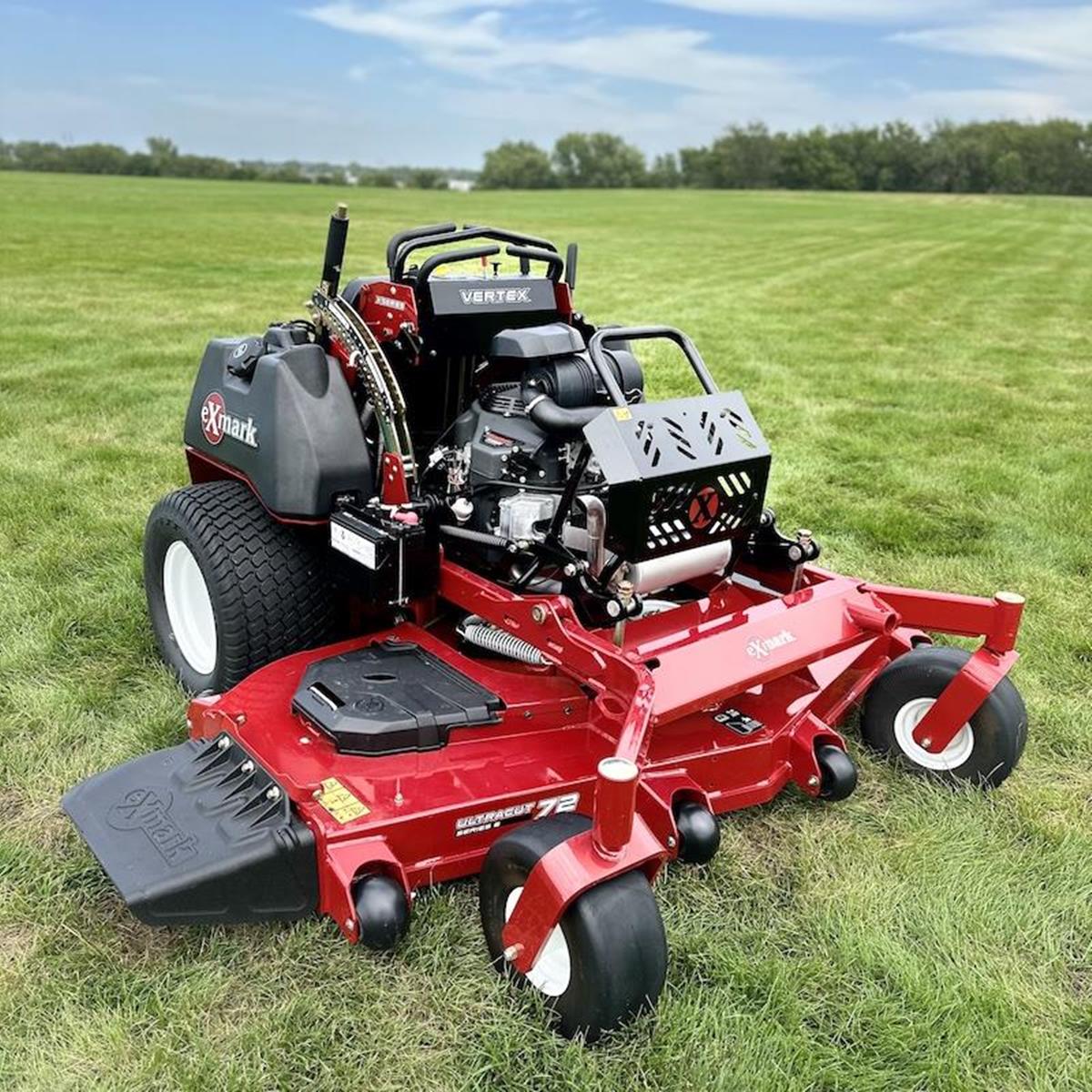

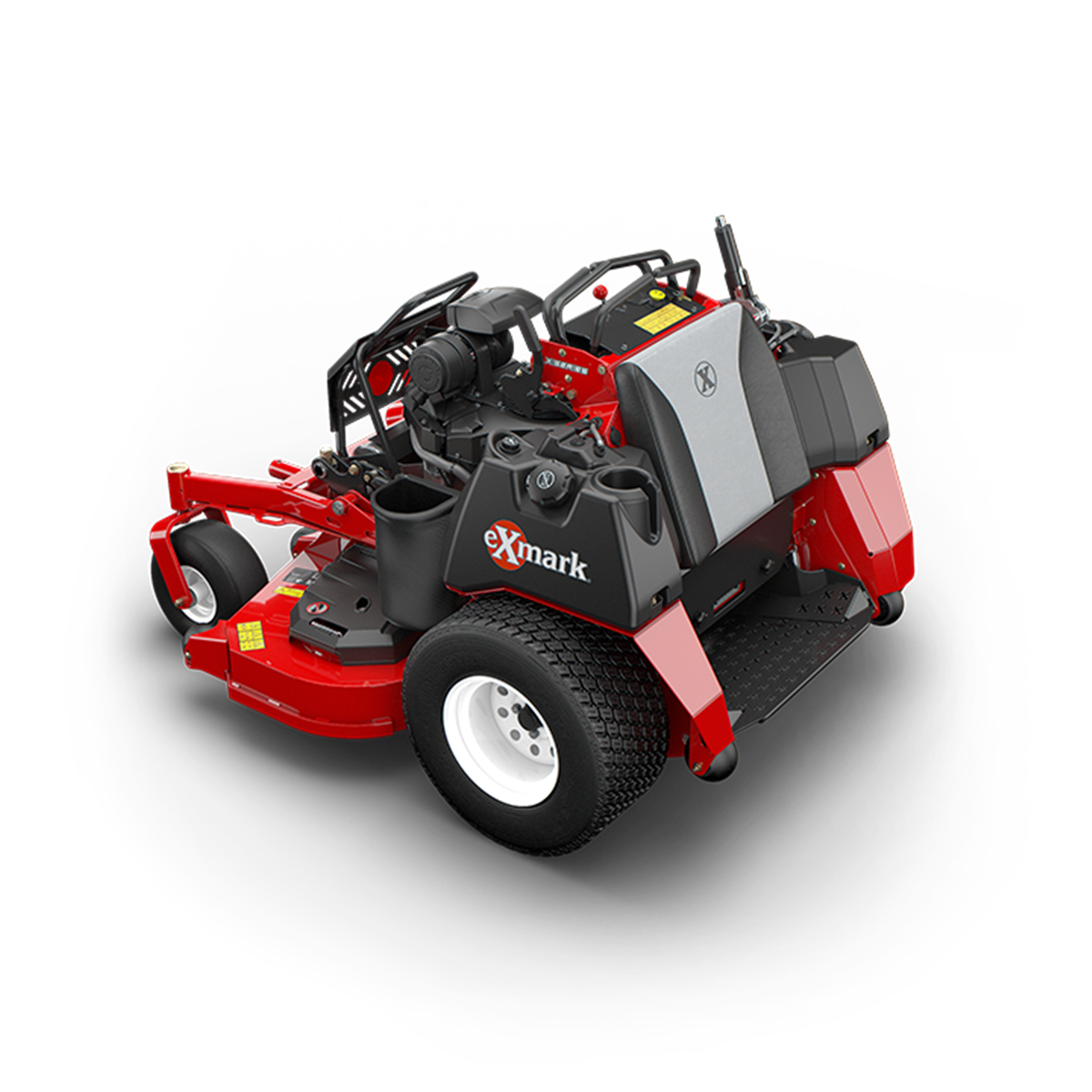

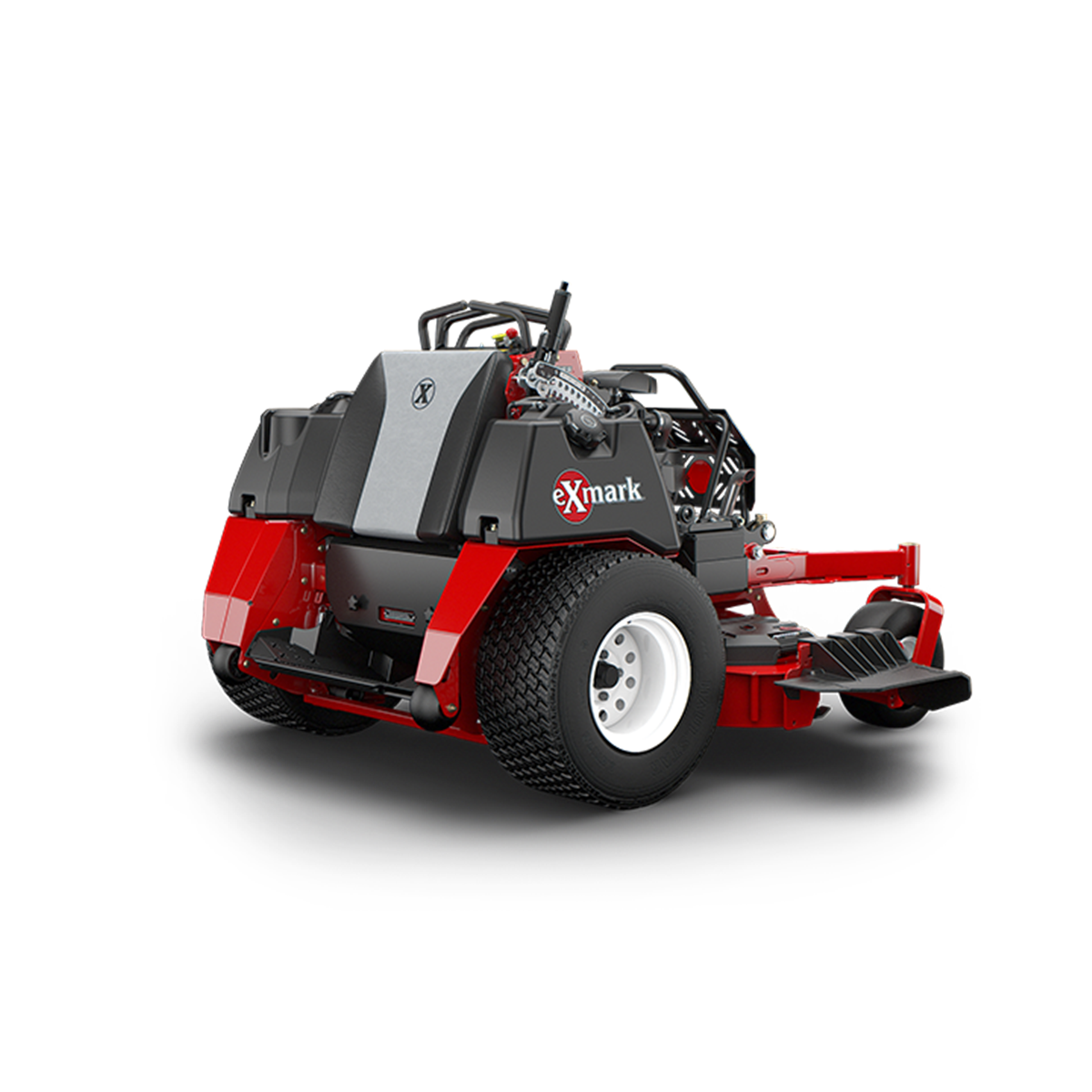

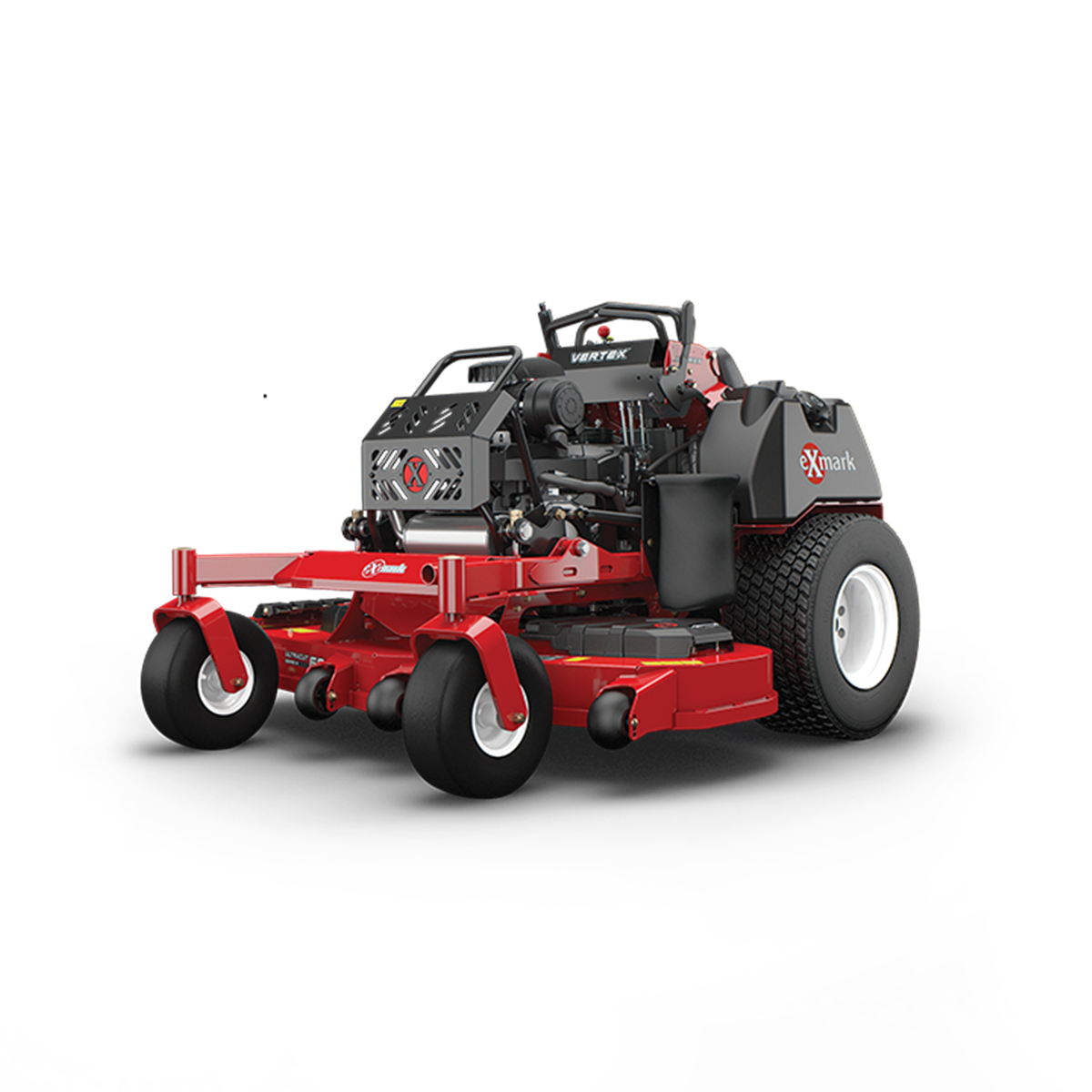

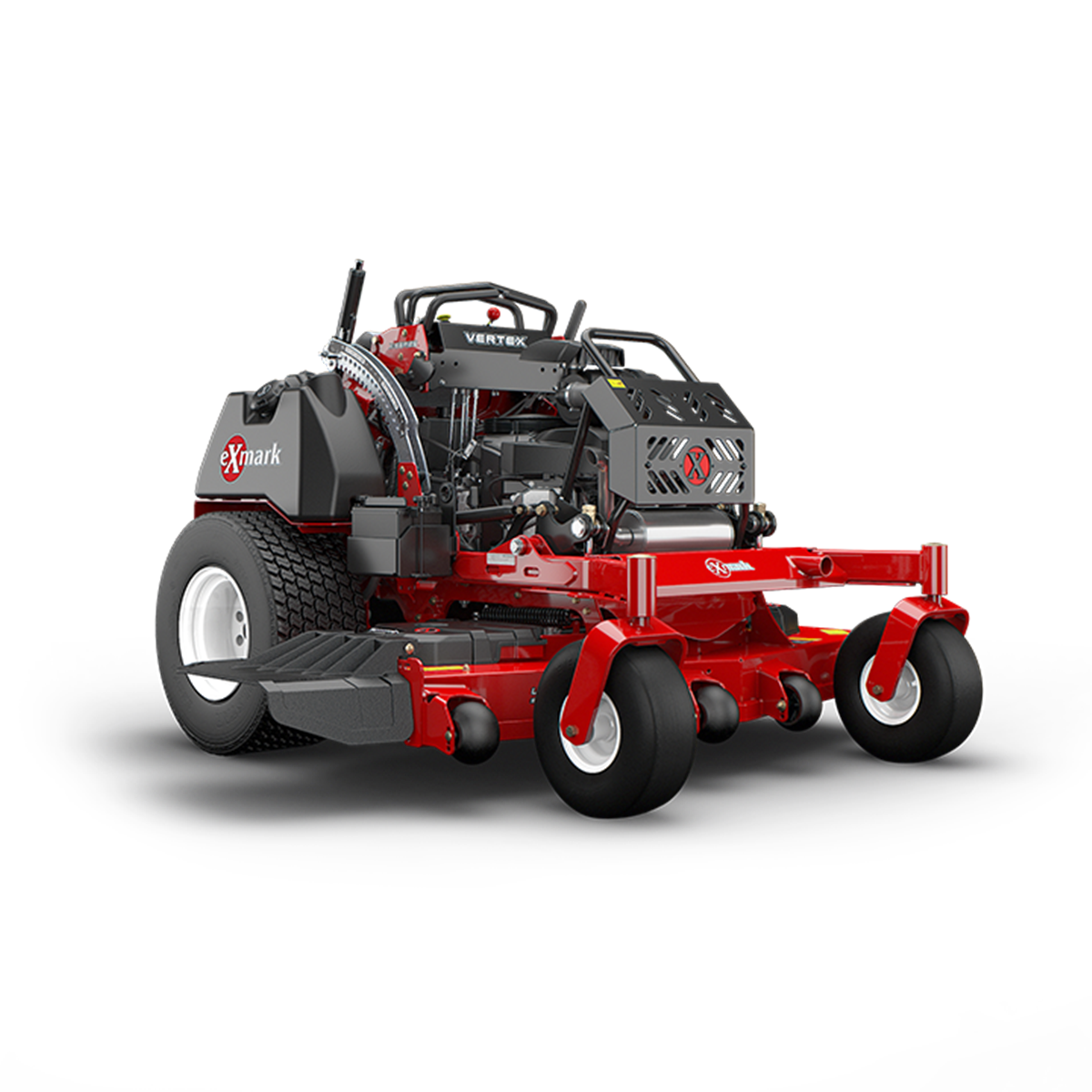

Vertex X-Series
VXX999EKA52600
Available Accessories and Attachments
3-Bushel Bagger ................................................................................................... GC3602
Accessory Adapter Kit ......................................................................................... 142-7445
Engine Oil Change Kit, Kawasaki 751-1000 ....................................................... 146-3247
Equipment Cover, Large ..................................................................................... 116-1379
Hydro Maintenance Kit ........................................................................................ 142-6099
Jack ..................................................................................................................... 127-6666
Light Kit, LED ...................................................................................................... 146-3389
Light Kit, Strobe ................................................................................................... 142-6734
Micro-Mulch System, 52"" ...................................................................................... MK526
Operator Controlled Discharge Gate & Cable Assembly .................................... 142-8181
Operator Controlled Discharge Lever, Foot (Requires 142-8181) ...................... 142-8166
Operator Controlled Discharge Lever, Hand ....................................................... 142-8372
Tractus Black Lugs .............................................................................................. 139-3603
Tractus Tire ......................................................................................................... 135-2287
Trimmer Holder .................................................................................................... 146-4109
Turf Striper, Flap .................................................................................................. 146-2365
Turf Striper, Roller ............................................................................................... 146-3167
UltraVac Collection System, 2-Bag ..................................................................... 146-1458
UltraVac Completing Kit ...................................................................................... 146-1637
