VENTRAC KR, KR502 TERRA RAKE 39.55431

VENTRAC KR, KR502 TERRA RAKE 39.55431

Regular price $2,890.00 USD
Regular price $2,890.00 USD Sale price $2,890.00 USD
Sale Sold out

Description:

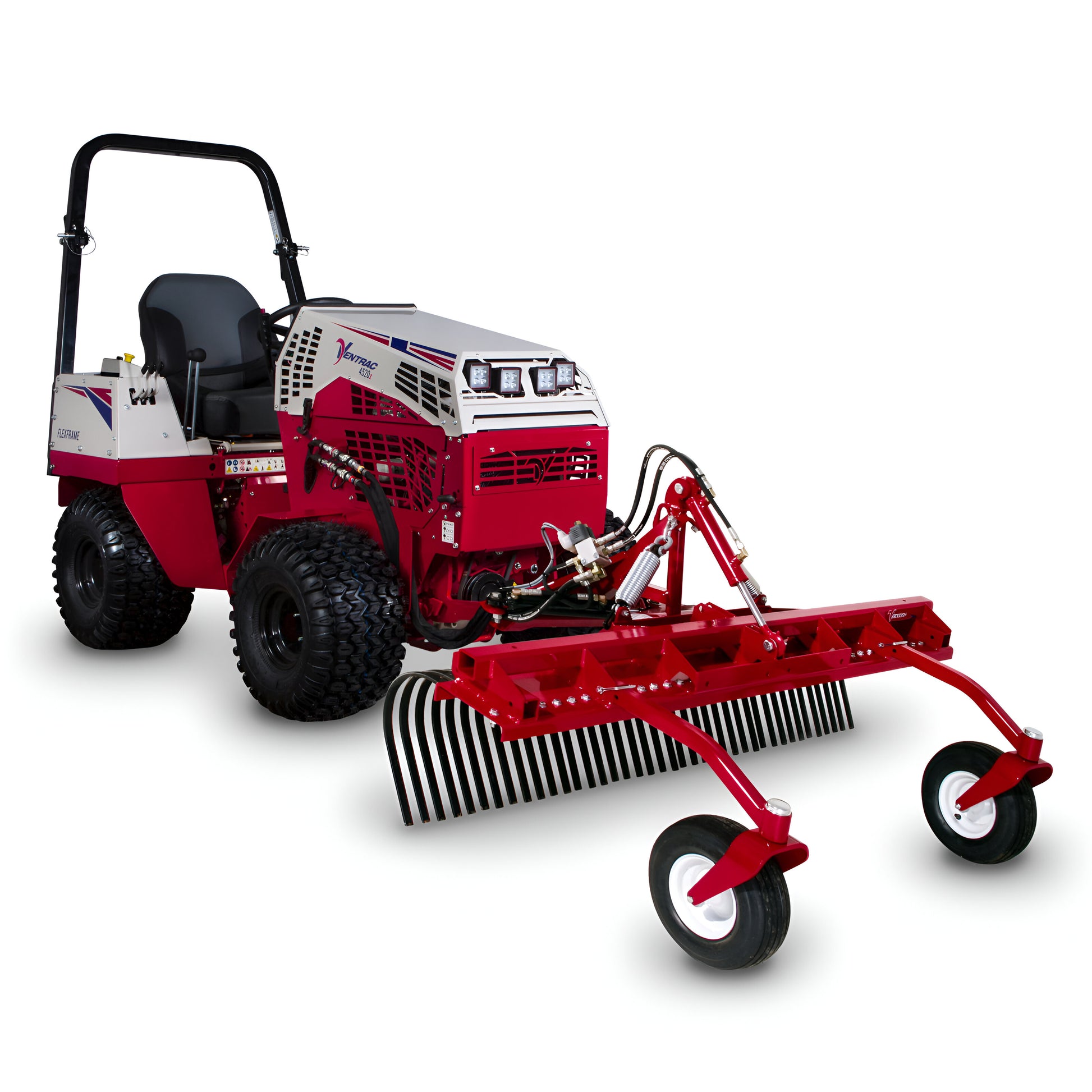

The 49-inch Ventrac KR Landscape Rake performs a variety of landscaping tasks. From soil preparation, leveling ground, to removing rocks and debris, the KR502 works with ease and efficiency.

The curved tines on the Landscape Rake can be used in either direction. Unlike pull-behind units, the Ventrac Landscape Rake is front mounted, allowing the operator to keep material from being driven over. This minimizes compaction as well as making the Landscape Rake very easy to use. The Landscape Rake can also be mounted to the rear 3-Point Hitch with the Ventrac 3-N-1 Adapter for pulling material.

Front gauge wheels are adjustable front-to-back. If a wider surface area is needed, optional 10-inch extensions are available, giving the operator an additional 20 inches of surface area.


MODELS


  • KR502 LANDSCAPE RAKE 39.55431


Specifications:

  • Product Type: Attachment
  • Category: Front Mount
  • Ventrac Mount System:
  • 3000 Series Mount: standard
  • 4000 Series Mount: standard

Dimensions:

  • Overall Width: 49 inches
  • Height: 32 inches
  • Weight: 250 lbs
  • Max Length: 59 inches

General:

  • Width with Wings: 69 inches
  • Tine Adjustment: 6 inches
  • Angle of Degree to Right or Left: 28 degrees
  • Min. Length: 53.5 inches
  • Digging Depth: 3 inches

Width Weight Height Length
0 Inch 0 Gram 0 Inch 0 Inch
