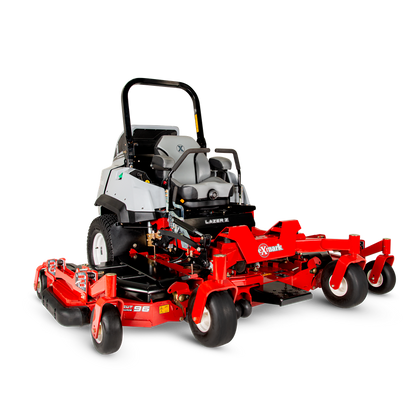

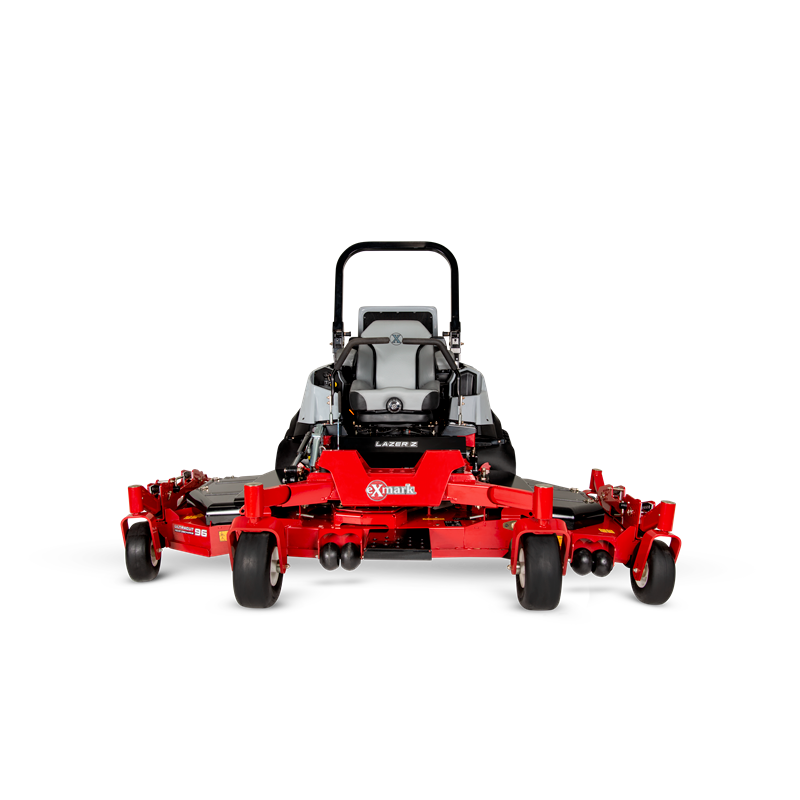

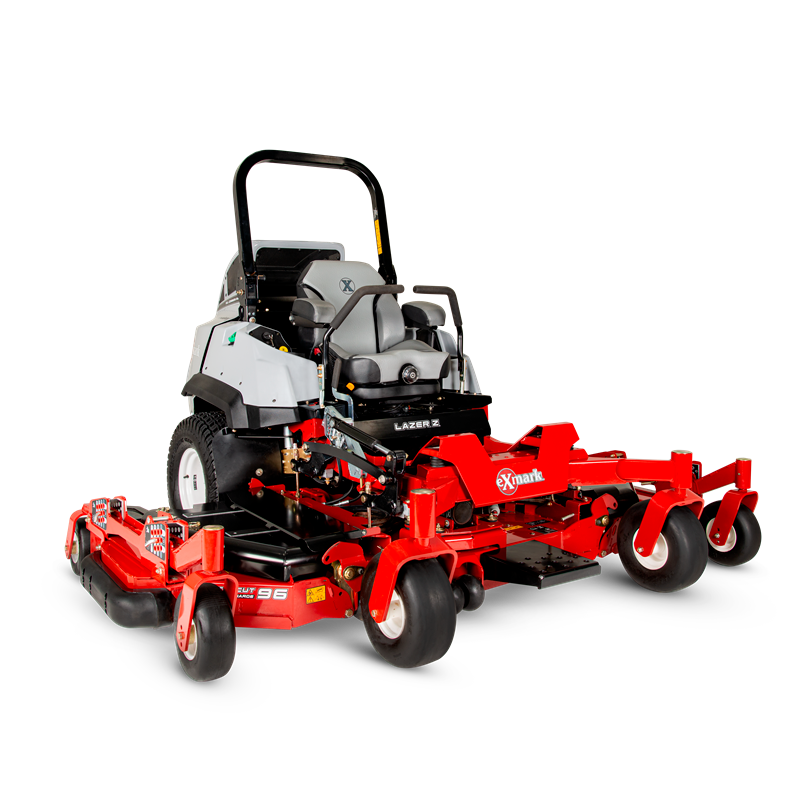

LZS88CDYM96RW0
LZS88CDYM96RW0
Couldn't load pickup availability
Width / Cutting Deck - 96"
Onboard Intelligence - RED Technology
Steering Control - Hydraulically dampened twin levers, adjust fore and aft., also adjustable to 2 height positions. Adjustable dampeners (3 positions) to customize drive responsiveness.
Caster Forks - .50" thick caster yoke arms.
Front Caster Tires - 15 x 6.0-6, smooth-tread, semi-pneumatic.
Drive Tires - 30 x 12-12, 6ply
Parking Brake - Lever-actuated internal wet disc brake.
Tractor Frame - Welded, heavy-duty 1.5" x 3" x 3/16" tubular steel.
Blade Spindles - No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft, double row bearings, top and bottom, and splined blade driver.
Electrical - 12-volt battery with 55-amp alternator.
Standard Features - 12-volt plug-in, engine hour meter and cup holder
Seat - Deluxe, two-tone, bolstered 4" travel suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
Engine Brand - Yanmar
Transmission Brand - Kanzaki
Transmission Speeds - Infinitely Variable
Engine Model - 3TNV88C
Engine Displacement - 1642
Engine Series - TNV
Fuel System - Common Rail Diesel
Speed - Infinitely variable speed selection from 0–12.5 mph forward, 0–7.0 mph reverse
Engine Speed - 3,000 RPM
Fuel Capacity - 12-gallon side fuel tanks
PTO Engagement - Integrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft
Drive Wheel Release - Allows unit movement without engine running.
Fuel Indicator - Mechanical float type
Deck Lift - Hydraulic
Carb Compliant - Yes
Safety Package - Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS - 2-post foldable ROPS standard with seat belt and latch.
Deck Style - Floating Deck
Deck Style Description - Full-floating UltraCut Rear Discharge Deck. Rear-discharge standard with finish cut baffles included.
Width / Cutting Deck - 96"
Deck Construction - 7-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge high strength alloy side skirt.
Cutting Heights - 1.0" to 5.5" in 0.25" increments
Blade Tip Speed - Approximately 18,400 fpm
Blades - 4 Blades at 24.50" Length
