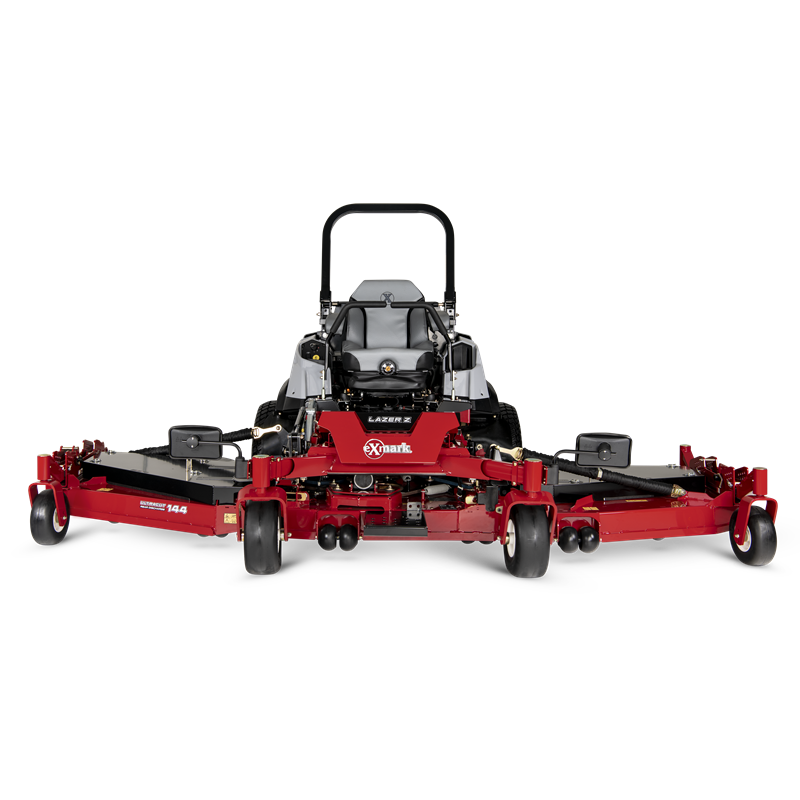

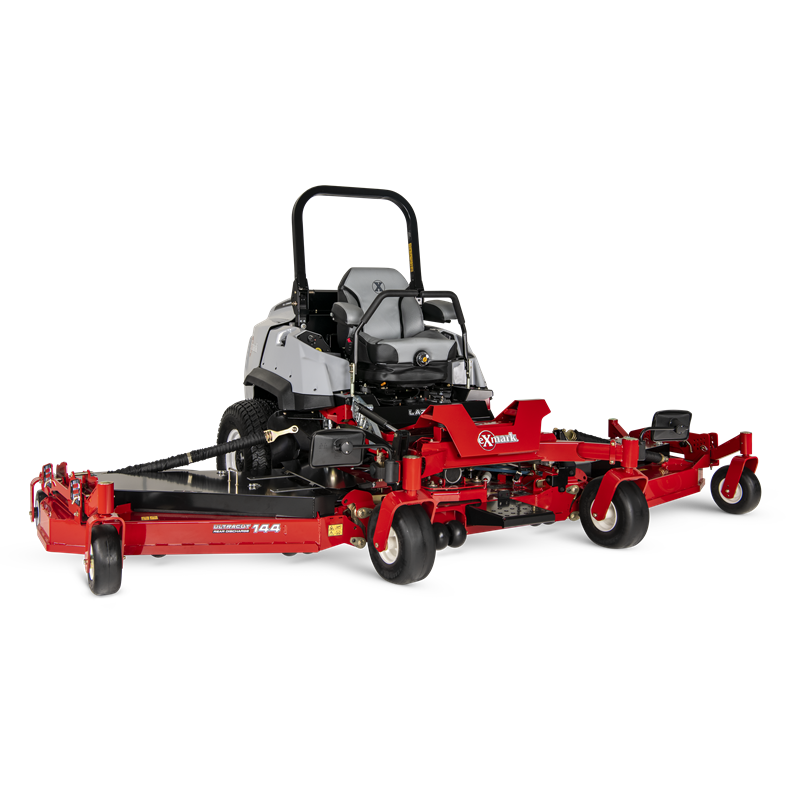

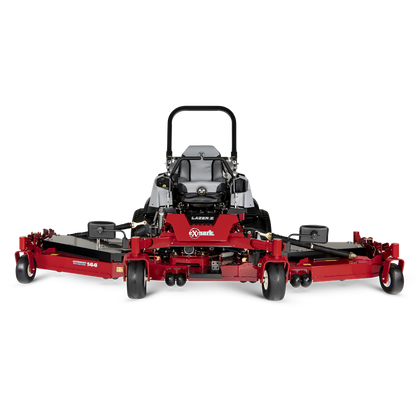

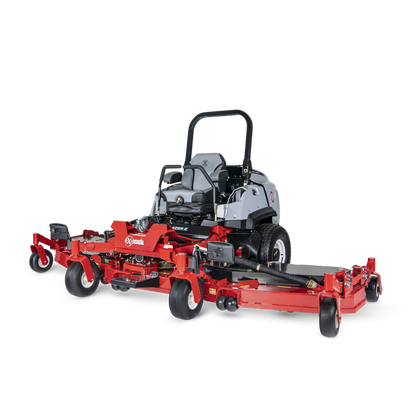

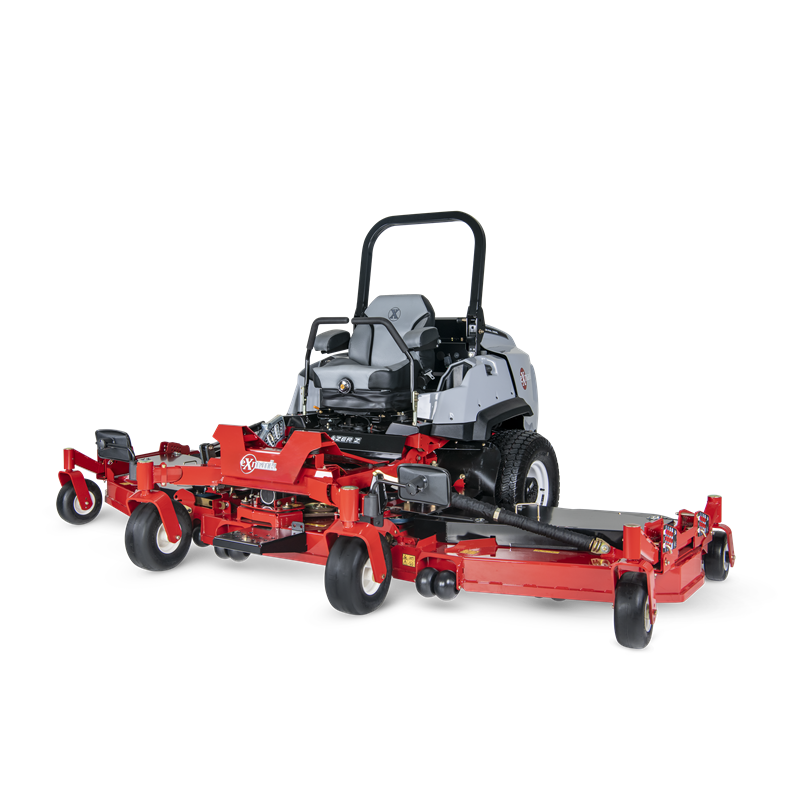

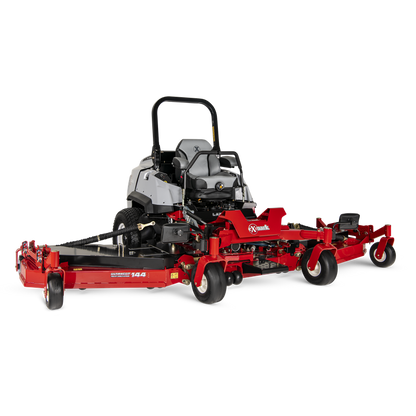

Discover the Exmark Lazer Z Diesel Mower
When maximum productivity, durability, and cut quality are your priorities, the new Exmark Lazer Z Diesel zero-turn mowers are the right choice. When equipped with the new industry-leading 144-inch UltraCut™ Flex Wing cutting deck, the Lazer Z Diesel can mow 11.5 acres per hour, making it the most productive mower Exmark has built. Powered by a cutting-edge Yanmar diesel engine, large drive tires allow you to reach ground speeds up to 12.5 MPH with a high-quality cut, the flex wings on the 144-inch decks pivot 20-degrees up and 15-degrees down on sloping terrain.
Width / Cutting Deck - 144"
Onboard Intelligence - RED Technology
Drive - Hydro-Drive
Starter - Electric
Steering Control - Hydraulically dampened twin levers, adjust fore and aft., also adjustable to 2 height positions. Adjustable dampeners (3 positions) to customize drive responsiveness.
Caster Forks - .50" thick caster yoke arms.
Front Caster Tires - 15 x 6.0-6, smooth-tread, semi-pneumatic.
Drive Tires - 29 x 12-12, 6ply
Safety Package - Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
Parking Brake - Spring applied, hydraulic release internal wet disc brake.
Tractor Frame - Welded, heavy-duty 1.5" x 3" x 3/16" tubular steel.
Blade Spindles - No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft, double row bearings, top and bottom, and splined blade driver.
Cup Holder - Yes
Electrical - 12-volt battery with 175-amp alternator.
Standard Features - 12-volt plug-in, engine hour meter and cup holder
Seat - Deluxe, two-tone, bolstered 4" travel suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
Transmission Brand - Kanzaki
Transmission Speeds - Infinitely Variable
Engine Brand - Yanmar
Engine Displacement - 1568
Speed - Infinitely variable speed selection from 0–10 mph in low speed forward, 0-6mph reverse and 0-17 mph in high speed forward, 0–10 mph reverse
Transmission - Hydrostatic
Fuel System - Common Rail Diesel with fuel cooler
Engine Speed - 3,000 RPM
Fuel Capacity - 12-gallon side fuel tanks
Air Filter - Heavy-duty canister air filtration system with electronic vacuum sensor
Drive Description - Kanzaki KPS-18T Transmission, 14-quart oil capacity, spin-on filter. 18 cc shoe type pumps and 1.83/1.09 cubic inch 2 speed Danfoss axial piston motors plus Omni planetary gear reduction, hydraulic oil cooler.
Fuel Type - Diesel
PTO Engagement - Integrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft
Deck Lift - Hydraulic
Carb Compliant - Yes
Safety Package - Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS - 2-post foldable ROPS standard with seat belt and latch.
Deck Style Description - Full-floating UltraCut Rear Discharge Deck. Rear-discharge standard with finish cut baffles included.
Width / Cutting Deck - 144"
Deck Construction - 7-gauge high strength alloy top that is formed and seam welded, with 7-gauge high strength alloy side skirt.
Cutting Heights - 1.0" to 5.5" in 0.25" increments
Blade Tip Speed - Approximately 18,400 fpm
Blades - 6 Blades at 24.50" Length
