Product Overview
For more than 30 years, the Exmark Lazer Z has been the choice of more landscape professionals than any other zero-turn mower. For pros that demand the absolute best durability, productivity, cut quality and innovation, the Lazer Z X-Series is the number one choice. With more configuration options than any other Exmark mower, the Lazer Z X-Series is the pinnacle of state-of-the-art commercial mowers. Choose from 52-, 60-, or 72-inch UltraCut Series 6, or massive 96-inch UltraCut Rear Discharge cutting decks. Our exclusive flow control baffles and Adapt tools-free deck rake adjustment deliver Exmark Signature cut quality and higher cutting speeds in any mowing conditions. Powered by a choice of state-of-the-art big block EFI V-Twin commercial engines from Kawasaki, Kohler and Vanguard, the Lazer Z X-Series powers through the largest jobs with ease. A long-travel full suspension operator seat features isolation bumpers to deliver a smoother ride for reduced operator fatigue.
When you’re looking for the pinnacle of power, performance, cut quality and durability in a commercial zero-turn mower, the Lazer Z X-Series is the obvious choice. Be sure to check out our other Lazer Z models as well, including the Lazer Z Diesel.
LRX820AKA726Q1
Width / Cutting Deck - 72"
Drive: Hydro-Drive
Starter: Electric
Steering Control: Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. Adjustable dampers (3 positions) to customize drive responsiveness
Caster Forks: .50" thick caster yoke arms.
Front Caster Tires: 13 x 6.5-6, smooth tread, semi-pneumatic
Drive Tires: 24 x 12-12, 4 ply Grassmaster TL
Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
Parking Brake: Lever actuated disc brake
Tractor Frame: Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 30mm (1.18") diameter spindle shaft and splined blade driver.
Electrical: 12-volt battery with 30-amp alternator.
Standard Features: Engine hour meter, USB plug-in, phone tray and cup holder
Seat: Deluxe, three-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
Engine Brand: Kawasaki® FX820EVO
Transmission Speeds: Infinitely Variable
Engine Model: FX820V
Engine Displacement: 822
Engine Series: V-Twin
Fuel System: Electronic Fuel Injection (EFI) System Integrated Throttle Body, Electronic Governor & ECU
Speed: Infinitely variable speed selection from 0–11.5 mph (18.5 kmph) forward, 0–7.0 mph (11.3 kmph) reverse
Engine Spec: FX820V
Engine Speed: 3,600 RPM
Air Filter: Heavy-duty canister air filtration system
Fuel Capacity: 12-gallon single fuel tank with single fill location
Drive Description: Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 16 cc pumps and 17.1 cubic inch motors.
Fuel Type: Gas EFI
PTO Engagement: MagStop Electromagnetic 250-ft-lb clutch with spot brake
Drive Wheel Release: Allows unit movement without engine running.
Fuel Indicator: Yes - electronic Sender

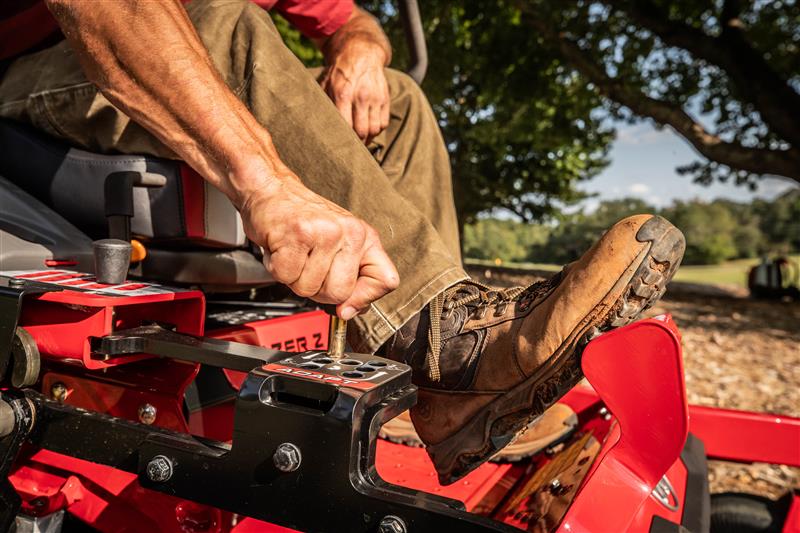

Deck Lift: Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position. Equipped with Adapt system.
Carb Compliant: Yes
ROPS: 2-post foldable ROPS standard with seat belt and latch.
Deck Style: Floating Deck
Deck Style Description: Full-floating UltraCut Series 6 with heavy-duty spindle. Side discharge standard with the option to bag or mulch.
Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.
Cutting Heights: 1.0" to 5.5" in 0.25" increments
Blade Tip Speed: Approximately 18,500 fpm
Blades: 3 Blades at 24.50" Length
