LRS801GKA60RA1
LRS801GKA60RA1
Couldn't load pickup availability
Product Overview

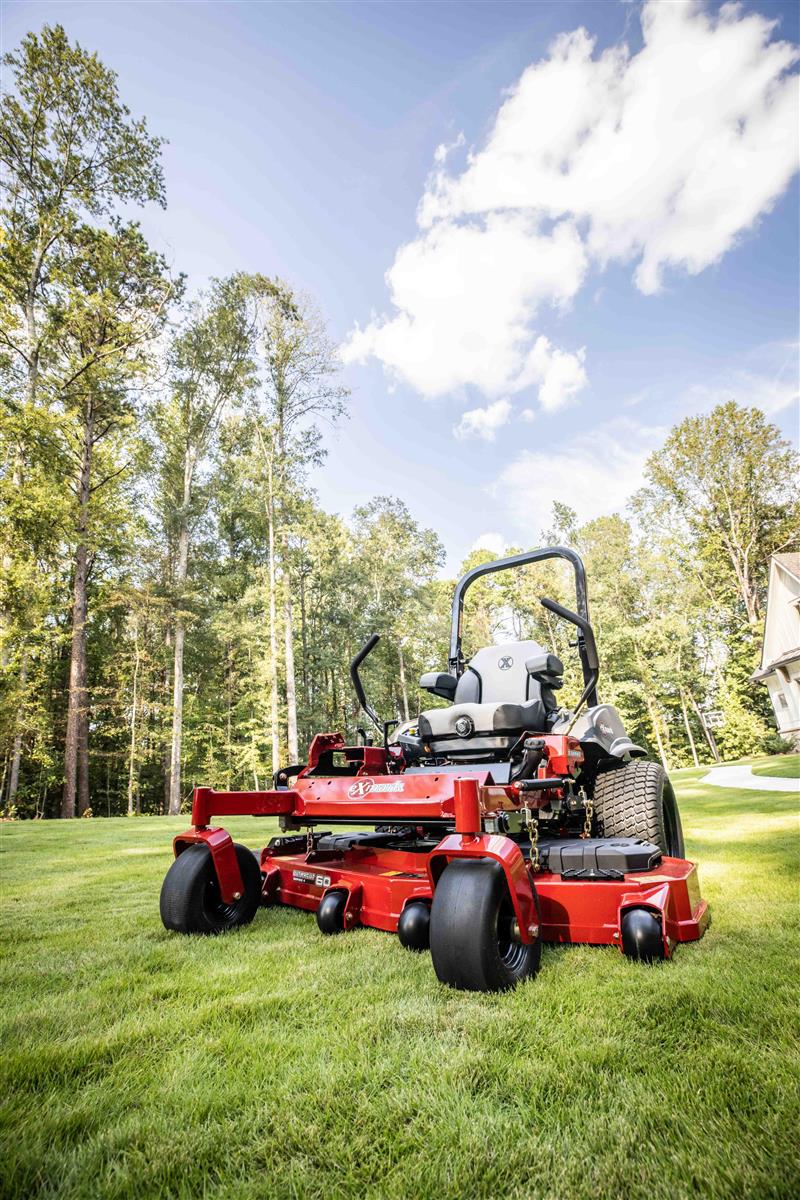

The Lazer Z S-Series makes up the core of countless landscape professionals’ fleets. With 30 years of refinement and innovation, the Lazer Z S-Series delivers maximum durability and Exmark Signature cut quality, with options for larger decks and more powerful engines than the Lazer Z E-Series. Select from 52-, 60-, or 72-inch UltraCut Series 4, or 60- or 72-inch UltraCut Rear Discharge cutting decks, with a choice of powerful Kawasaki or EFI Kohler commercial engines.
In all, the Lazer Z S-Series delivers the power and productivity to make quick work of large jobs, with the reliability and long-term value Exmark owners expect.
LRS801GKA60RA1
Width / Cutting Deck: 60"
Drive: Hydro-Drive
Starter: Electric
Steering Control: Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. Adjustable dampers (3 positions) to customize drive responsiveness
Caster Forks: .50" thick caster yoke arms.
Front Caster Tires: 13 x 6.5-6, smooth tread, semi-pneumatic
Drive Tires: 24 x 12-12, 4 ply Grassmaster TL
Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
Parking Brake: Lever actuated disc brake
Tractor Frame: Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
Electrical: 12-volt battery with 15-amp alternator.
Standard Features
Engine hour meter and cup holder
Seat: Deluxe, bolstered suspension seat with Elastomeric Vibration Control material. Adjustment: Fore and aft from Operators’ Position.
Engine Brand: Kawasaki®
Transmission Speeds: Infinitely Variable
Engine Model: FX801V
Engine Displacement: 852
Engine Series: V-Twin
Speed: Infinitely variable speed selection from 0–10.0 mph (16.1 kmph) forward, 0–7.0 mph (11.3 kmph) reverse
Engine Spec: FX801V
Engine Speed: 3,750 RPM
Air Filter; Heavy-duty canister air filtration system
Fuel Capacity: 12-gallon single fuel tank with single fill location
Drive Description: Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 12 cc pumps and 14. 5 cubic inch motors.
Fuel Type: Gas Carbureted
PTO Engagement: MagStop electromagnetic 200-ft-lb clutch with spot brake
Drive Wheel Release: Allows unit movement without engine running.
Fuel Indicator: Yes - electronic Sender
Deck Lift: Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Carb Compliant: No
ROPS: 2-post foldable ROPS standard with seat belt and latch.
Deck Style: Floating Deck

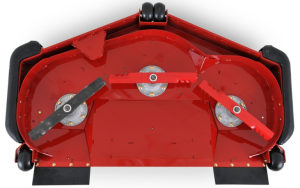

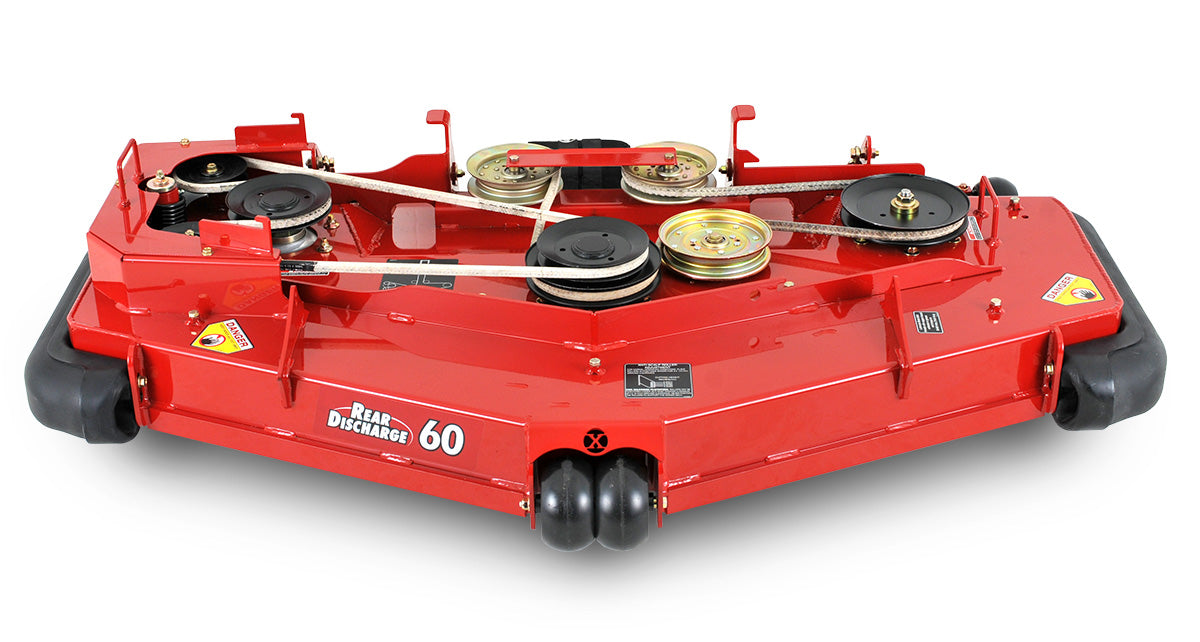

Deck Style Description: Full-floating UltraCut Series Rear Discharge standard, with molded Bumpers.
Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.
Cutting Heights: 1.0" to 5.5" in 0.25" increments
Blade Tip Speed: Approximately 18,500 fpm
Blades: 3 Blades at 20.50" Length
