Description:

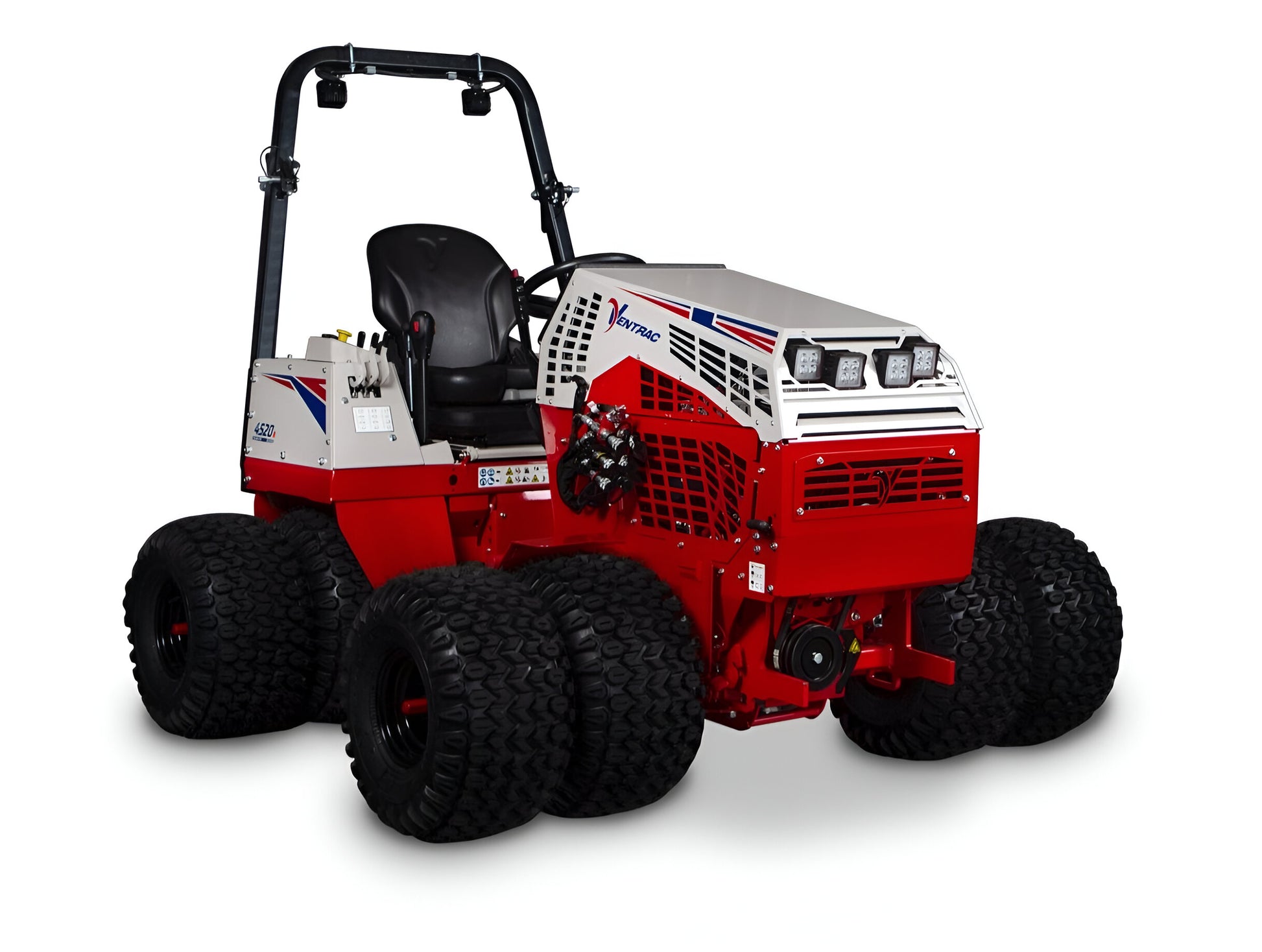

Through Ventrac’s advanced engineering and design efforts, the best mix of machine performance, operator experience, and durability has come together in the new 4520 tractor.

Ventrac has become the #1 choice for versatility for ground’s care professionals. Combining the perfect blend of peak power and agility with front-mounted attachments for superior visibility, pivoting frame for maneuverability, and proper weight distribution for balance and stability, it’s time to elevate your Ventrac experience to a whole new level.

Specifications:

Engine

• Manufacturer: Kubota
• Model: WG972-G-E4
• Horsepower: 32.5 hp
• Peak Torque: 51 ft-lbf
• Engine Displacement: 962 cc
• Number of Cylinders: 3
• Cooling System: Liquid-cooled
• Fuel Capacity: 6 gallons
• Fuel Type: Gasoline
• Estimated Fuel Economy (with 60" mower): 1.2 gallons per hour

Drive System

• Drive Type: All-Wheel Drive (AWD)
• Low Range Travel Speed: 5 mph forward, 4 mph reverse
• High Range Travel Speed: 10 mph forward, 8 mph reverse

Dimensions

• Overall Width: 48.5 inches
• Overall Length (standard hitch, ROPS up): 81.5 inches
• Height (ROPS up): 68 inches
• Height (ROPS down): 54 inches
• Weight with 3-Point Hitch: 1780 pounds
• Wheelbase: 45 inches
• Weight: 1700 pounds

Tires

• Standard All-Terrain Tires: 22x12-8
• Standard Turf Tires: 22x11-10
