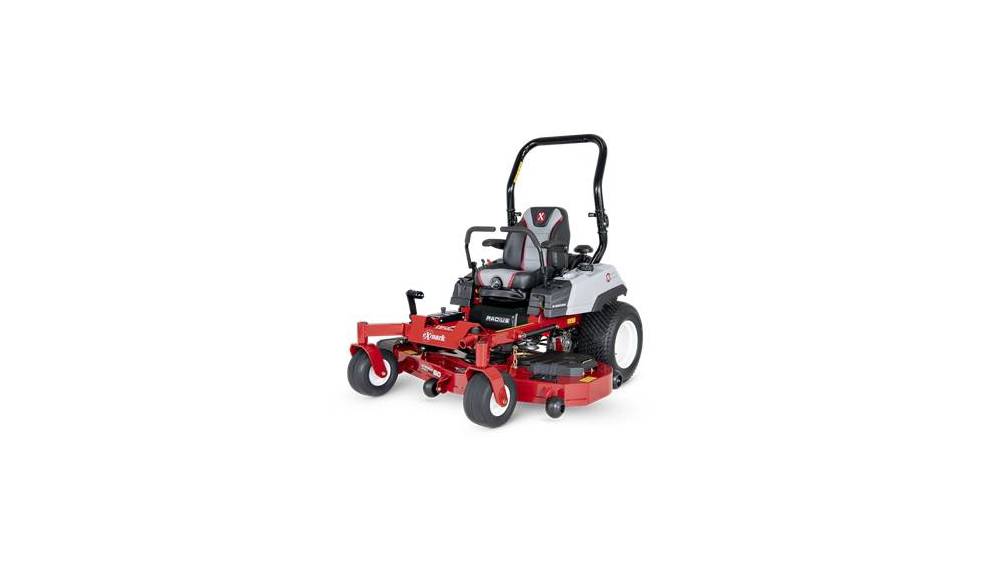

Exmark RADIUS S-SERIES 691 KAW 52"" DECK RZS691GKA523A3
Exmark RADIUS S-SERIES 691 KAW 52"" DECK RZS691GKA523A3
Description:
Whether you’re upgrading from an older machine or are looking to add another zero-turn to your trailer, the new Radius S-Series delivers an unbeatable combination of durability, operator comfort, performance, and value. Choose from 48-, 52-, or 60-inch UltraCut Series 3 side-discharge cutting decks, each equipped with our exclusive flow-control baffles for a superior cut quality. An adjustable full-suspension operator seat and isolated footrest provide superior all-day mowing comfort.
Radius S-Series models are also designed for maximum durability with reduced maintenance. With just two grease points to lubricate annually, low-maintenance Hydro-Gear integrated transmissions, and reliable Kawasaki commercial engines, Radius S-Series models are built for the long haul.
Features:
UltraCutDeck - UltraCut Deck Technology:
- Exmark’s exclusive UltraCut decks on Radius models feature maintenance-free, sealed-bearing spindle assemblies for increased durability and reduced downtime. Zero maintenance required.
UnibodyFrame - Heavy Duty Fabricated Frame:
- The fully welded frame, built from 2x3-inch frame tubes, places major components like the engine, hydro drive system, and fuel tank lower for improved center of gravity, traction, stability, and handling.
EX23 RZX ROPS - Adjustable Rollover Protection System (ROPS):
- Easily foldable adjustable ROPS system made from round tubes allows flexible accessory placement and enhances operator safety.
HeightofCut - Height of Cut Made Easy:
- Patented height of cut adjustment system allows operators to quickly and accurately select cutting height from the operator seat.
EX23 RZX Seat - Full-Suspension Operator Seat:
- Radius S- and X-Series models feature an adjustable full-suspension operator seat with three inches of suspension and EVC stretch foam base for superior all-day mowing comfort.
EX23 RZS EngineGuard - Fully Guarded Engine:
- The Radius S-Series engine is protected by a strong steel lower guard and durable composite upper guard, providing comprehensive protection against foreign object damage.
Specification:
Engine
- Engine Brand: Kawasaki
- Engine Model: FX651V
- Engine Displacement: 726 cc
- Engine Series: V-Twin
- Fuel Type: Gas Carbureted
- Fuel Capacity: 7-gallon (26.5-L) single fuel tank
- Engine Speed: 3,800 rpm
- Air Filter: Cyclonic Air Cleaner
Performance
- Speed: Infinitely variable speed selection from 0–9.0 mph (14.5 kmph) forward, 0–5.0 mph (8.0 kmph) reverse
- Transmission: Hydrostatic
- Drive: Hydro-Drive
- PTO Engagement: MagStop electromagnetic 125-ft-lb clutch
- Drive Wheel Release: Allows unit movement without engine running
- Fuel Indicator: Translucent Visual
Deck
- Deck Style: Floating Deck
- Deck Style Description: Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch
- Width / Cutting Deck: 48"
- Deck Construction: 10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt
- Cutting Heights: 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from operator's seat
- Blade Tip Speed: Approximately 18,500 fpm
- Blades: 2 Blades at 24.5" Length
Dimensions
- Width: 61 in (155 cm)
- Height: 69.7 in (177.0 cm)
- Length: 82.9 in (210.6 cm)
- Curb Weight: 900 lbs (408.2 kg)
Controls and Features
- Starter: Electric
- Steering Control: Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment
- Front Caster Tires: 13 x 6.5-6, smooth tread, pneumatic. Caged Roller Bearings (126-3289)
- Drive Tires: 23 x 9.5-12 Super Turf TL
- Parking Brake: Lever-actuated pawl brake
- Tractor Frame: Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel
- Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver
- Electrical: 12-volt battery with 15-amp alternator
- Standard Features: Engine hour meter, cup holder, tow hitch and jack receiver
- Seat: Deluxe suspension (adjustable spring suspension) seat with high back, molded foam flip-up armrests, and integral safety switch
- Drive Description: Dual Hydro Gear ZT3100, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters
- Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators
- ROPS: 2-post foldable ROPS standard with seat belt and latch
Compliance
- CARB Compliant: No
Width | Weight | Height | Length |
---|---|---|---|
61 | 900 Pounds | 69.7 | 82.9 Inch |
