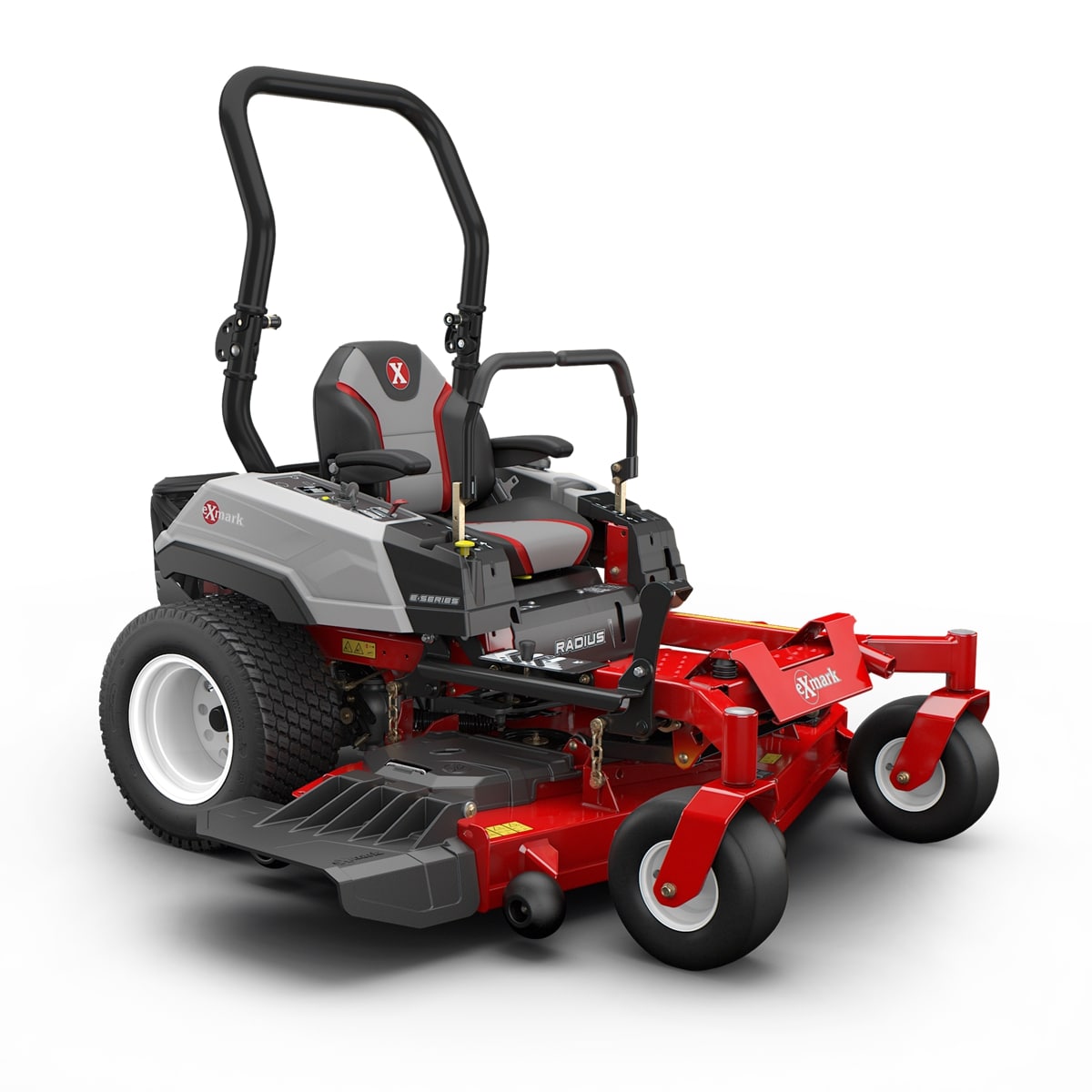

Exmark Radius E-Series 24.5 HP Exmark 708CC w/60 UltraCut Series 3 Deck RZE708GEM60300

Exmark Radius E-Series 24.5 HP Exmark 708CC w/60 UltraCut Series 3 Deck RZE708GEM60300

Regular price $7,799.00 USD
Regular price $7,799.00 USD Sale price $7,799.00 USD
Sale Sold out

Description:


Designed to deliver professional-grade features at an affordable price, the new Exmark Radius E-Series zero-turn mower is a great option for landscape maintenance pros and home owners alike. Available with a choice of 48-, 52- or 60-inch UltraCut Series 3 cutting decks, the Radius E-Series delivers the cut quality you expect, with reduced maintenance and durability you can count on. Powered by the Exmark twin-cylinder commercial engine, Radius E-Series models deliver superior operator comfort with an isolated footrest, seat suspension and a new side pod design (2023 models) that places vital controls right at the operator’s fingertips.


Specification:

  • UPC
  • 193308225340
  • Starter
  • Electric
  • Steering Control
  • Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
  • Caster Forks
  • .375" thick caster yoke arms
  • Front Caster Tires
  • 13 x 6.5-6, smooth tread, pneumatic. Bushings
  • Drive Tires
  • 22 x 10.5-12 Super Turf TL
  • Parking Brake
  • Lever-actuated pawl brake.
  • Tractor Frame
  • Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel.
  • Blade Spindles
  • No maintenance, sealed and non-greasable spindles; 7.30"-diameter cutter housing contains 17mm (.67") diameter spindle shaft and hex blade drive.
  • Electrical
  • 12-volt battery with 15-amp alternator.
  • Standard Features
  • Engine hour meter, cup holder, tow hitch and jack receiver
  • Seat
  • High back seat with foam padded seat cushion, armrests and integral safety switch
  • Engine Brand
  • Exmark
  • Transmission Speeds
  • Infinitely Variable
  • Engine Model
  • LC2P77F
  • Engine Displacement
  • 708 cc
  • Fuel System
  • Carbureted
  • Transmission
  • Hydrostatic
  • Engine Series
  • V-Twin
  • Engine Spec
  • K5045
  • Drive
  • Hydro-Drive
  • Engine Speed
  • 3,600 rpm
  • Air Filter
  • Standard Engine Manufacturer's air filter
  • Fuel Capacity
  • 7-gallon (26.5-L) single fuel tank with single fill location.
  • Drive Description
  • Dual Hydro Gear ZT3100, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.
  • Fuel Type
  • Gas Carbureted
  • PTO Engagement
  • MagStop electromagnetic 125-ft-lb clutch
  • Drive Wheel Release
  • Allows unit movement without engine running.
  • Fuel Indicator
  • Translucent Visual
  • Deck Lift
  • Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
  • Carb Compliant
  • No
  • Safety Package
  • Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
  • ROPS
  • 2-post foldable ROPS standard with seat belt and latch.
  • Deck Style
  • Floating Deck
  • Deck Style Description
  • Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch.
  • Width / Cutting Deck
  • 60"
  • Deck Construction
  • 10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.
  • Cutting Heights
  • 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from operator's seat.
  • Blade Tip Speed
  • Approximately 18,500 fpm
  • Blades
  • 3 Blades at 20.50" Length
  • Dimensions
  • Width: 72.3 in (183.6 cm)
  • Height: 69.7 in (177.0 cm)
  • Length: 80.5 in (204.5 cm)
  • Curb Weight
  • 901 lbs

Width Weight Height Length
72.3  901 Pounds 69.7  80.5 Inch
